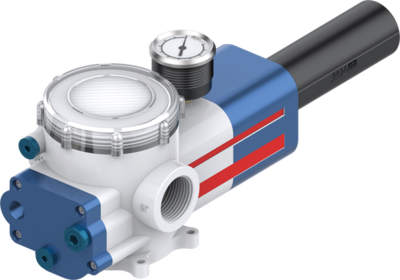

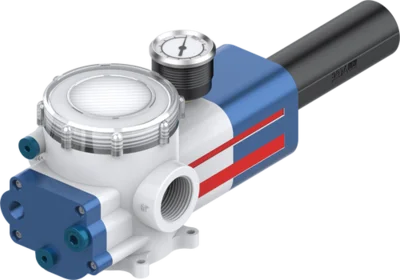

Vacuümejector
Serie ZTP
- Krachtig
- Volumestroom: 341 l/min - 1448 l/min
- Luchtverbruik: 208 l/min - 416 l/min
- Vacuümniveau max.: -92 kPa
- Alles-in-één oplossing
De vacuümgenerator is multifunctioneel en geschikt voor verschillende toepassingen. Hij heeft een geïntegreerd filter met zelfreinigende functie en een optionele luchtbesparende functie.
Vacuümniveau max.
Volumestroom [l/min]
Gewicht [kg]
Bouwmaat: ZTP3031 | ||||
| Bestelnr. | Vacuümniveau max. | Volumestroom | Luchtverbruik bij 2,2 bar | |
|---|---|---|---|---|
ZTP3031 | -92 [kPa] | 341 [l/min] | ||
ZTP3031-AR3-DL-SN | -92 [kPa] | 341 [l/min] | ||
ZTP3031-AR3-DL-SP | -92 [kPa] | 341 [l/min] | ||
ZTPE3031-AR3-DL-SN | -92 [kPa] | 341 [l/min] | ||
ZTPE3031-AR3-DL-SP | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-10-N | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-10-N-Q | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-10-P | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-10-P-Q | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-14-N | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-14-N-Q | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-14-P | -92 [kPa] | 341 [l/min] | ||
ZTPED3031-14-P-Q | -92 [kPa] | 341 [l/min] | ||
Bouwmaat: ZTP3032 | ||||
| Bestelnr. | Vacuümniveau max. | Volumestroom | Luchtverbruik bij 2,2 bar | |
ZTP3032 | -92 [kPa] | 682 [l/min] | ||
ZTP3032-AR3-DL-SN | -92 [kPa] | 682 [l/min] | ||
ZTP3032-AR3-DL-SP | -92 [kPa] | 682 [l/min] | ||
ZTPE3032-AR3-DL-SN | -92 [kPa] | 682 [l/min] | ||
ZTPE3032-AR3-DL-SP | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-10-N | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-10-N-Q | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-10-P | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-10-P-Q | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-14-N | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-14-N-Q | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-14-P | -92 [kPa] | 682 [l/min] | ||
ZTPED3032-14-P-Q | -92 [kPa] | 682 [l/min] | ||
ZTPL3032 | -75 [kPa] | 724 [l/min] | ||
ZTPL3032-AR3-DL-SN | -75 [kPa] | 724 [l/min] | ||
ZTPL3032-AR3-DL-SP | -75 [kPa] | 724 [l/min] | ||
ZTPLE3032-AR3-DL-SN | -75 [kPa] | 724 [l/min] | ||
ZTPLE3032-AR3-DL-SP | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-10-N | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-10-N-Q | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-10-P | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-10-P-Q | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-14-N | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-14-N-Q | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-14-P | -75 [kPa] | 724 [l/min] | ||
ZTPLED3032-14-P-Q | -75 [kPa] | 724 [l/min] | ||
Bouwmaat: ZTP3033 | ||||
| Bestelnr. | Vacuümniveau max. | Volumestroom | Luchtverbruik bij 2,2 bar | |
ZTP3033 | -92 [kPa] | 1023 [l/min] | ||
ZTP3033-AR3-DL-SN | -92 [kPa] | 1023 [l/min] | ||
ZTP3033-AR3-DL-SP | -92 [kPa] | 1023 [l/min] | ||
ZTPE3033-AR3-DL-SN | -92 [kPa] | 1023 [l/min] | ||
ZTPE3033-AR3-DL-SP | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-10-N | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-10-N-Q | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-10-P | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-10-P-Q | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-14-N | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-14-N-Q | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-14-P | -92 [kPa] | 1023 [l/min] | ||
ZTPED3033-14-P-Q | -92 [kPa] | 1023 [l/min] | ||
Bouwmaat: ZTP3034 | ||||
| Bestelnr. | Vacuümniveau max. | Volumestroom | Luchtverbruik bij 2,2 bar | |
ZTP3034 | -92 [kPa] | 1364 [l/min] | ||
ZTP3034-AR3-DL-SN | -92 [kPa] | 1364 [l/min] | ||
ZTP3034-AR3-DL-SP | -92 [kPa] | 1364 [l/min] | ||
ZTPE3034-AR3-DL-SN | -92 [kPa] | 1364 [l/min] | ||
ZTPE3034-AR3-DL-SP | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-10-N | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-10-N-Q | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-10-P | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-10-P-Q | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-14-N | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-14-N-Q | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-14-P | -92 [kPa] | 1364 [l/min] | ||
ZTPED3034-14-P-Q | -92 [kPa] | 1364 [l/min] | ||
ZTPL3034 | -75 [kPa] | 1448 [l/min] | ||
ZTPL3034-AR3-DL-SN | -75 [kPa] | 1448 [l/min] | ||
ZTPL3034-AR3-DL-SP | -75 [kPa] | 1448 [l/min] | ||
ZTPLE3034-AR3-DL-SN | -75 [kPa] | 1448 [l/min] | ||
ZTPLE3034-AR3-DL-SP | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-10-N | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-10-N-Q | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-10-P | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-10-P-Q | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-14-N | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-14-N-Q | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-14-P | -75 [kPa] | 1448 [l/min] | ||
ZTPLED3034-14-P-Q | -75 [kPa] | 1448 [l/min] | ||
