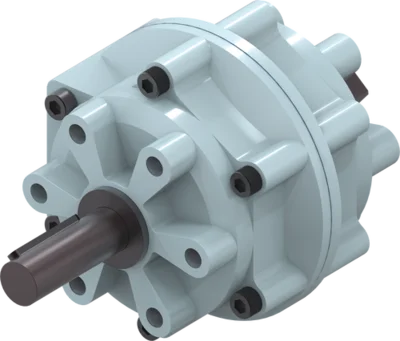

Draaivleugelcilinder
Serie PRN
"De rendabele"
- Concentratie op de hoofdzaken
De meest rendabele manier van zwenken verlaagt uw productiekosten - Gedempte eindpositie
Met behulp van de olierem kunt u de eindposities probleemloos benaderen en zo de proceszekerheid en de levensduur van uw toepassing verhogen - Gesmede aandrijfas
Deze as is niet alleen robuust, maar kan ook individueel worden aangepast
Seriekenmerken
1,5 milj. cycli zonder onderhoud (max.)
IP54
Inductieve sensor
Zwenkhoek 90°
Zwenkhoek 180°
Zwenkhoek 270°
Zwenkhoek 100°
Zwenkhoek 280°- Positioneerbaarheid 2 posities
Bouwmaat: PRN1 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
|---|---|---|---|---|
PRN1-90-B | 90 [°] | 0° / +4° [°] | 90 [°] | |
PRN1-180-B | 180 [°] | 0° / +4° [°] | 90 [°] | |
PRN1-270-B | 270 [°] | 0° / +4° [°] | 45 [°] | |
Bouwmaat: PRN3 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN3-90-B | 90 [°] | 0° / +4° [°] | 90 [°] | |
PRN3-180-B | 180 [°] | 0° / +4° [°] | 90 [°] | |
PRN3-270-B | 270 [°] | 0° / +4° [°] | 45 [°] | |
Bouwmaat: PRN10 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN10-90-B | 90 [°] | 0° / +4° [°] | 90 [°] | |
PRN10-180-B | 180 [°] | 0° / +4° [°] | 90 [°] | |
PRN10-270-B | 270 [°] | 0° / +4° [°] | 45 [°] | |
Bouwmaat: PRN20 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN20-90-B | 90 [°] | 0° / +4° [°] | 90 [°] | |
PRN20-180-B | 180 [°] | 0° / +4° [°] | 90 [°] | |
PRN20-270-B | 270 [°] | 0° / +4° [°] | 45 [°] | |
Bouwmaat: PRN30 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN30-90 | 90 [°] | 0° / +3° [°] | 45 [°] | |
PRN30-180 | 180 [°] | 0° / +3° [°] | 45 [°] | |
PRN30-270 | 270 [°] | 0° / +3° [°] | 45 [°] | |
Bouwmaat: PRN50 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN50-90 | 90 [°] | 0° / +3° [°] | 45 [°] | |
PRN50-180-B | 180 [°] | 0° / +3° [°] | 45 [°] | |
PRN50-270 | 270 [°] | 0° / +3° [°] | 45 [°] | |
Bouwmaat: PRN150 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN150-90 | 90 [°] | 0° / +3° [°] | 45 [°] | |
PRN150-180-B | 180 [°] | 0° / +3° [°] | 45 [°] | |
PRN150-270 | 270 [°] | 0° / +3° [°] | 45 [°] | |
Bouwmaat: PRN300 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN300-90 | 90 [°] | 0° / +3° [°] | 45 [°] | |
PRN300-180-B | 180 [°] | 0° / +3° [°] | 45 [°] | |
PRN300-270 | 270 [°] | 0° / +3° [°] | 45 [°] | |
Bouwmaat: PRN800 | ||||
| Bestelnr. | Zwenkhoek | Tolerantie zwenkhoek | Starthoek | |
PRN800-90 | 90 [°] | 0° / +3° [°] | 45 [°] | |
PRN800-270 | 270 [°] | 0° / +3° [°] | 45 [°] | |
